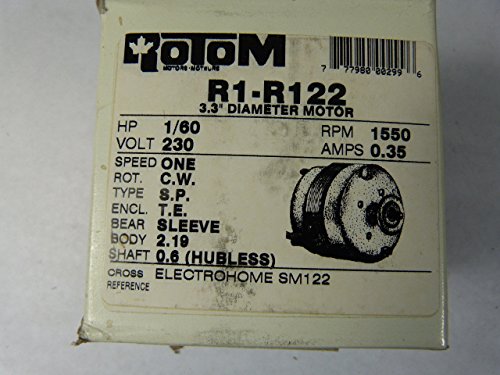

Rotom Shaded Pole Replacement Fan Motor 230V 1/60 HP 1550 RPM — R1-R122

SKU: R1-R122

$300.00
Stock: 5 units

Description

  • The Rotom Shaded Pole Replacement Fan Motor is an industrial-grade, commercial-grade electrical component engineered specifically to ensure continuous airflow circulation across demanding refrigeration and mechanical ventilation environments.
  • Fabricated from premium heavy-gauge steel and copper windings, this high-performance component handles intensive duty cycles with consistent torque delivery while permanently resisting internal thermal breakdown and humidity oxidation.
  • The innovative optimized shaded pole engineering feature significantly improves quiet motor operation to smoothly handle low-ambient temperature operations without causing bearing seizure or electrical winding failure.
  • Ideal for licensed HVAC/R technicians, mechanical contractors, and facility maintenance supervisors, this durable electric motor features a standard 3.3-inch frame profile to rapidly execute clean, direct field installations, maximize overall energy efficiency, and permanently eliminate expensive ventilation system downtime callbacks.

Specifications

Manufacturer / Brand

Rotom Motors (Electric Motor Division)

Product Line / Series

R1 Shaded Pole Motor Series

Manufacturer Part Number / Master SKU

R1-R122

UPC

742721431953

ASIN

B011D3O82S

Input Line Voltage

230 Volts AC electrical supply requirement.

Operating Frequency Rating

60 Hz alternating current systems.

Rated Output Power

1/60 Horsepower mechanical force production.

Full Load Current

0.35 Amps electrical current draw rate.

Nominal Shaft Speed

1550 RPM mechanical revolutions per minute.

Motor Frame Diameter

3.3-inch round industry standard structural frame.

Item Unit Net Weight

907 grams (2.00 pounds)

Physical Assembly Footprint

114 mm x 84 mm x 84 mm (4.5" x 3.3" x 3.3")
