Carrier Nidec Permanent Split Capacitor Condenser Fan Motor 1/12 HP 1100 RPM — K055SWF7924013B

SKU: K055SWF7924013B

$395.00
Stock: 3 units

Description

  • The Carrier Nidec Permanent Split Capacitor Condenser Fan Motor is an authentic, factory-authorized OEM replacement induction drive engineered specifically to power top-discharge axial fans in residential air conditioning systems.
  • Precision-built to strict Carrier Corporation parameters by Nidec (U.S. Motors), this premium 1/12 HP, 48-frame motor relies on a Totally Enclosed Air Over (TEAO) enclosure that shields internal winding tracks from continuous weather extremes and aggressive thermal loads.
  • Operating smoothly at 1.70 Amps on standard 208-230V power grids, the single-speed driver system features an all-angle thrust bearing mechanism paired with integrated automatic-reset thermal overload protectors to prevent burnout during severe summer run cycles.
  • HVAC service mechanics and commercial maintenance supervisors can easily drop this extended-stud-mounted replacement into compatibility layouts to permanently eliminate operational vibrations, restore factory acoustics, and guarantee certified thermodynamic heat rejection across external condenser coils.

Specifications

Manufacturer / Brand

Carrier Corporation (United Technologies / Manufactured by Nidec / U.S. Motors)

Product Line / Series

OEM Replacement Condenser Fan Motor Series

Manufacturer Part Number / SKU

K055SWF7924013B

UPC

681711200234

ASIN

B07X6LZR42

Output Power / Horsepower

1/12 HP (0.083 HP)

Rotational Speed

1100 RPM (Single Speed)

Supply Voltage Rating

208-230 VAC

Electrical Phase / Frequency

Single Phase (1 PH) / 60 Hz

Full Load Amperage

1.70 Amps

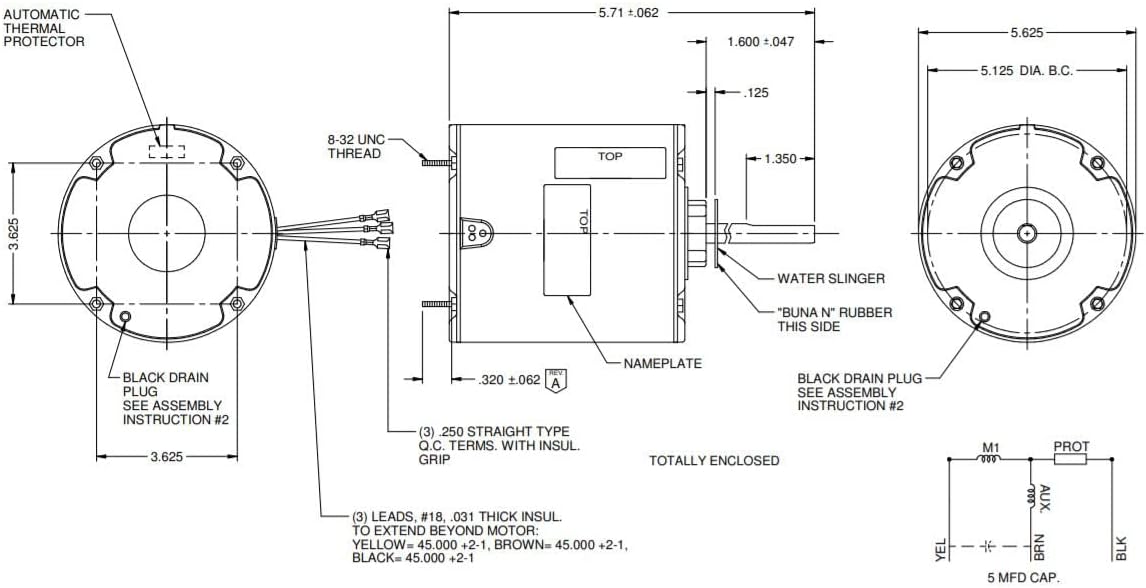

Motor Frame Size

NEMA 48 Frame (5.6" body diameter)

Shaft Dimensions

1/2" Diameter x 1.6" Length

Item Unit Net Weight

3,590 grams (7.91 lbs)
