FAST-STAT Model 5000 Multi-Zone Thermostat Wire Extender, Adds 4 Virtual Wires

SKU: Model 5000

$208.98
Stock: 5 units

Description

  • The FAST-STAT Model 5000 Thermostat Wire Extender is an innovative, professional-grade electronic multiplexer system engineered to add four virtual control pathways over any existing low-voltage thermostat line.

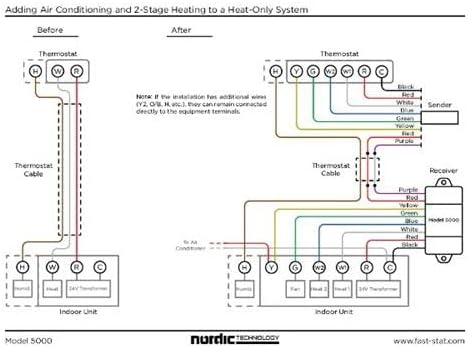

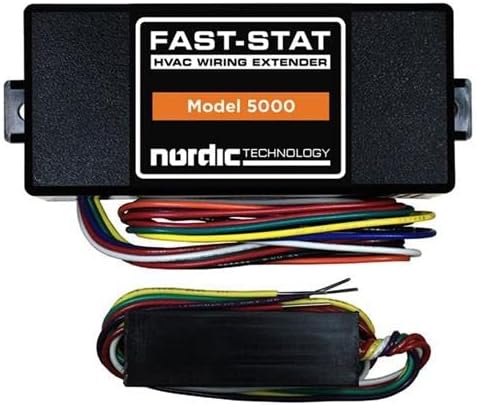

  • Consisting of a compact sending unit that fits discreetly behind the wall interface and a matching cabinet receiver node, this advanced 24V solution allows technicians to convert a basic 2-wire line into a fully functional 6-wire network, or expand a standard 4-wire line into 8 independent control lines.
  • Perfect for retrofitting smart Wi-Fi thermostats, adding two-stage heat pump relays, or introducing dedicated fan controls, the Model 5000 reliably multiplexes control signals up to 300 feet over standard solid copper lines, saving homeowners and contractors the massive labor expense and disruption of fishing new cables through finished ceilings and drywalled walls.

Specifications

Manufacturer / Brand

FAST-STAT

Manufacturer Part Number / SKU

Model 5000

UPC

628451151240

ASIN

B00GYY9XG8

Product Line / Series

Advanced HVAC Wire Extender Series

Signal Expansion Capability

Adds Four (4) Virtual Wires over an existing multi-conductor cable array (e.g., converts a standard 2-wire cable into 6 total control pathways, or a 4-wire cable into 8 control lines)

Control Voltage Circuit Rating

24 VAC Class II Low-Voltage System Loop (50/60 Hz)

Maximum Current Capacity

2.0 Amps per individual control pathway channel

Maximum Field Distance Run

Rated to transmit clear digital switching commands over standard solid copper thermostat lines up to 300 Feet (91 meters)
