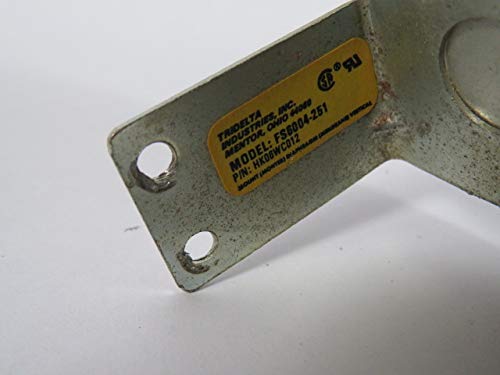

Carrier Tridelta Single-Pole Double-Throw Furnace Air Pressure Switch — HK06WC012

SKU: HK06WC012

$240.00
Stock: 4 units

Description

  • The Carrier Tridelta Single-Pole Double-Throw Furnace Air Pressure Switch is a factory-authorized OEM safety control component designed to continuously verify the operational pressure parameters of high-efficiency gas heating units.
  • Engineered to precise specifications by Tridelta for the Carrier Corporation network, this premium SPDT air proving switch monitors draft inducer motor draw to ensure the assembly maintains proper draft velocity and venting volume before permitting a gas ignition sequence.
  • Rated up to 0.5 PSI with a 5.0 Amp capacity at 120V, its highly responsive mechanical diaphragm prevents hazardous, unburned flue gas rollout or combustion air starvation by initiating an immediate safety shutdown if venting blockages occur.
  • Industrial HVAC contractors, field service technicians, and facility maintenance managers can seamlessly mount this dual-port, 3-wire replacement module to eliminate nuisance limits trips and restore full factory safety validation across complex Carrier, Bryant, and Payne furnace installations.

Specifications

Manufacturer / Brand

Carrier Corporation (United Technologies / Manufactured by Tridelta/Honeywell)

Product Line / Series

Factory Authorized Parts OEM Safety Switch Series

Manufacturer Part Number / SKU

HK06WC012

UPC

00781897006435

ASIN

B00FKE4T6Y

Maximum Pressure Rating

0.5 PSI

Operating Pressure Scale

0.35" to 1.50" W.C. (Water Column)

High Fire Setting

0.42" W.C.

Low Fire Setting

0.33" W.C.

Electrical Contact Rating

5.0 Amps Resistive at 120 VAC (Suitable for 28 VA pilot duty networks)

Item Unit Net Weight

115 grams (4.05 oz)

Physical Assembly Dimensions

101.6 mm x 101.6 mm x 50.8 mm (4.00" Length x 4.00" Width x 2.00" Height)
