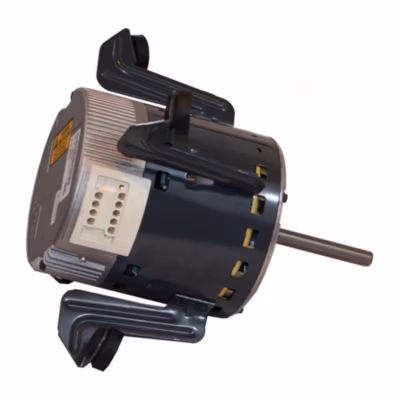

Factory Authorized Parts™ – Blower Motor – ECM 120/240 VAC 1,300 RPM 1/2 HP
Item: 58MV660004
Description
When looking for replacement motors, look no further than our Factory Authorized Parts (FAP)! FAP are designed to meet exact Carrier® Corporation specifications, ensuring optimum system performance, proven reliability, easy installation and maintenance and safe system operation.
FAP Features
- Improved Efficiency – Motor runs at most efficient portion of motor performance curve by design
- Ensures motor is not overloaded
- Ensures that motor operates at the design RPM, which produces the correct airflow
- Reduced System Vibration – System design put motor RPM at optimal point for limiting torque pulsations that can generate excess vibration in the unit
- Reduced Noise – System qualification includes additional testing such as start/stop and pure tone noise identification which further ensures there is not excessive vibration or noise during unit operation.
- Overall length of motor assures that fan is located at intended position to minimize sound
Specifications
| Dimensions | |
|---|---|
| Length | 10.25 inches (in) |
| Width | 11 inches (in) |
| Height | 11 inches (in) |
| Weight | 11.85 pounds (lbs) |
| Attributes | |
| Amps | 4.3-7.7 |
| Approvals | CSA Listed |
| Basis Of Rotation View | Lead End |
| Bearing Type | Ball |
| Brand | Factory Authorized Parts |
| Country of Origin | MEX |
| Cubic Measurement | 0.7177 |
| Cycle/Hertz | 50/60 Hz |
| Dimensional Weight | 10 |
| Duty | (S1) Continuous Running Duty |
| Full Load Amps | 4.3-7.7 |
| GTIN | 00822529338996 |
| Insulation Class | B |
| Motor HP | 1/2 |
| Motor Type | ECM (Electronically Commutated Motor) |
| Mounting Type | Vertical Shaft Down |
| NEMA Frame | 39 |
| Number of Speeds | Variable |
| Phase | Single |
| Prop 65 | NO |
| RPM | 1,300 |
| Rotation | Reversible |
| Shaft Diameter | 1/2″ |
| Shaft Length | 3 15/16″ |
| UOM | EA |
| UPC | 822529338996 |
| Voltage | 120/240 VAC |
