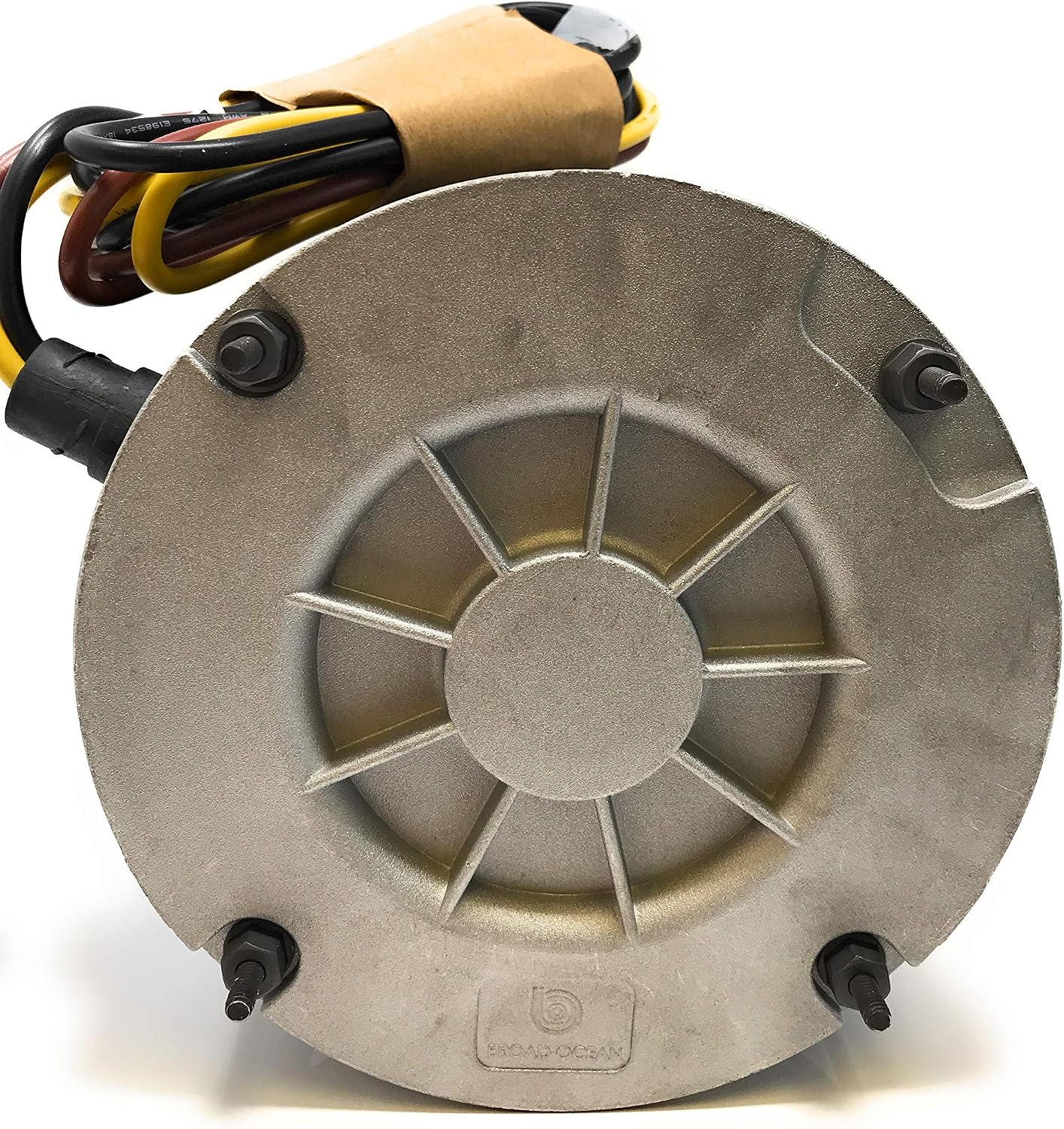

Carrier HB39GQ230 Broad-Ocean Single Phase Condenser Fan Motor 1/4 HP 1100 RPM — HB39GQ230
SKU: HB39GQ230
$543.01
Stock:
5 units
Description
- The Carrier HB39GQ230 Broad-Ocean Single Phase Condenser Fan Motor is an authentic, factory-authorized OEM replacement induction drive engineered specifically to drive top-discharge axial fans in residential air conditioning and heat pump units.
- Manufactured to rigorous Carrier Corporation criteria by Broad-Ocean, this premium 1/4 HP, 48-frame motor utilizes dual heavy-duty ball bearings and a Totally Enclosed Air Over (TEAO) outer shell to ensure long-term thermal stabilization inside hot condenser exhaust streams.
- Operating smoothly on standard 208-230V commercial and residential power grids, the single-speed system pulls a low 1.45 full load amps while delivering a high-velocity 1100 RPM rotational output to maximize thermodynamic heat rejection across external microtube coil surfaces.
- Mechanical service contractors, field technicians, and facility maintenance managers can drop this direct-fit motor into over 100 Carrier, Bryant, and Payne equipment chassis to perfectly restore whisper-quiet factory acoustic limits and eliminate expensive troubleshooting callbacks.
Specifications
Manufacturer / Brand
Carrier Corporation (United Technologies / Manufactured by Broad-Ocean)
Product Line / Series
Factory Authorized Parts OEM Fan Motor Series
Manufacturer Part Number / SKU
HB39GQ230
UPC
662441113529
ASIN
B081XP21RY
Output Power / Horsepower
1/4 HP (0.25 HP)
Rotational Speed
1100 RPM (Single Speed)
Supply Voltage Rating
208-230 VAC
Full Load Amperage
1.45 Amps
Motor Frame Size
48 Frame
Shaft Dimensions
1/2" Diameter x 2.5" Length with a single side flat surface
Item Net Weight
4,990 grams (11.0 lbs)
