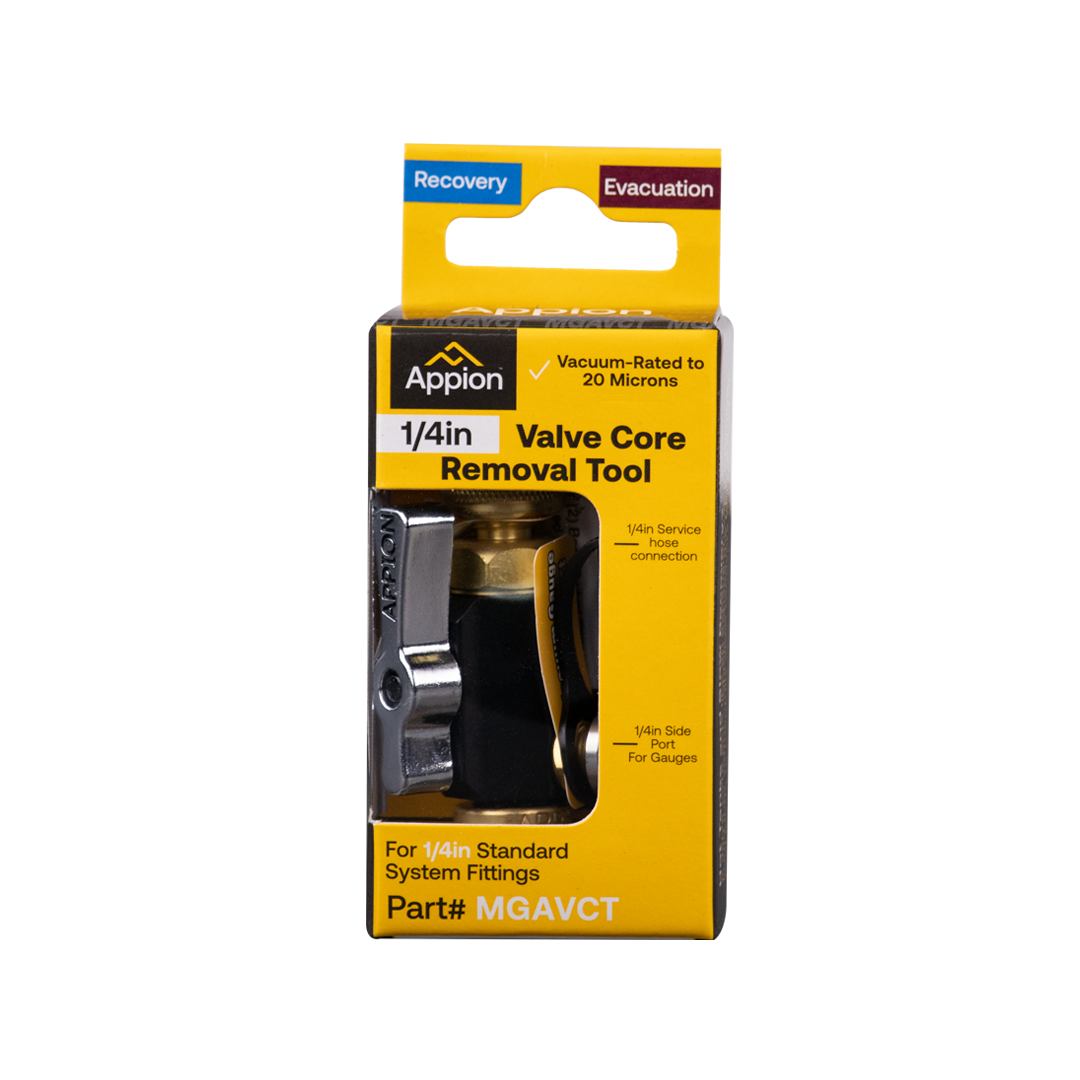

Appion MegaFlow MGAVCT 1/4″ Vacuum-Rated Valve Core Removal Tool, 20-Micron Certified

SKU: MGAVCT

$200.00
Stock: 9 units

Description

  • The premium Appion MegaFlow MGAVCT 1/4-inch Vacuum-Rated Valve Core Removal Tool is an essential, high-performance service instrument engineered to radically accelerate HVAC/R evacuation and refrigerant recovery cycles.

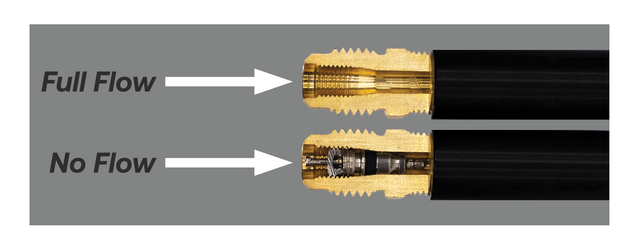

  • Masterfully machined from aircraft-grade anodized aluminum with robust brass slider rods, this advanced tool isolates and extracts restrictive Schrader valve cores under live pressure, completely eliminating the standard airflow bottleneck and opening a full-bore path for high-speed deep vacuum pull-downs.
  • Vacuum-certified down to 20 microns and pressure-stabilized up to 800 PSI, the tool incorporates a dual O-ring seal system and an additional 1/4" side access port, letting field technicians attach digital micron gauges directly at the system boundary for flawless, leak-proof diagnostic tracing.

Specifications

Manufacturer / Brand

Appion Inc.

Manufacturer Part Number / SKU

MGAVCT

UPC

852233005000

ASIN

B00GZJ8T4U

Product Line / Series

MegaFlow® Series VCRT

System Line Connection Port

1/4" Female Flare with a dynamic brass knurled swivel coupler nut

Vacuum Hose Side Connection Port

1/4" Male Flare

Auxiliary Side Access Service Port

1/4" Male Flare fitted with an internal high-flow valve core

Working Pressure Boundary

High-pressure rated up to 800 PSI; fully safe for modern high-pressure R-410A refrigerant loops
